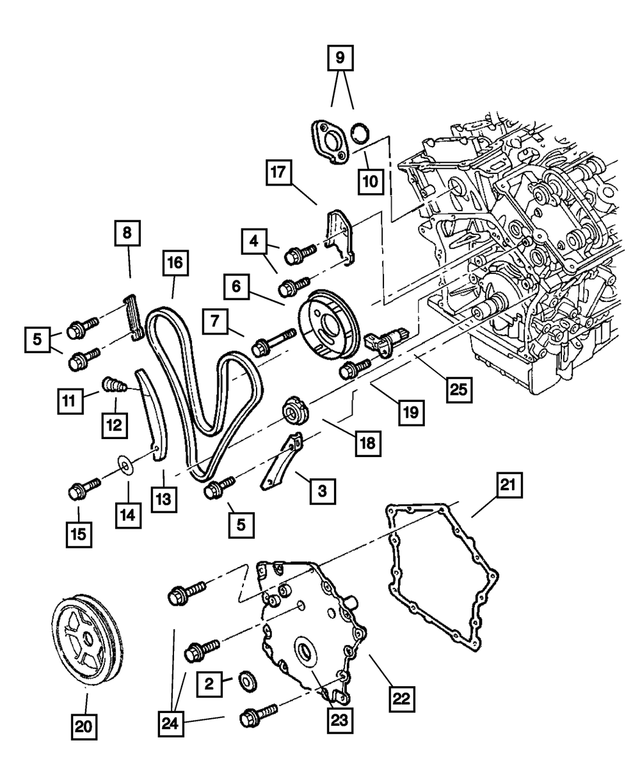

Timing Belt and Cover for 2002 Chrysler Concorde
No.
Part # / Description / Price
Price
N/A
Timing Chain Guide
Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Long. See Note. Right Short. 05183244AB Tensioner Package Supercedes To A CHAIN PACKAGE The Tensioner Is NOT Included. Intake Primary Left. For Early Production Engines With 3/8`` Pitch. The Distance Between The Two Pins On One Link. This Chain Has Washers On The Pins. Has Square Teeth On Water Pump Pulley. Left Short.
N/A
Timing Chain Tensioner Package Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: 05183244AB Tensioner Package Supercedes To A CHAIN PACKAGE The Tensioner Is NOT Included.
3
Timing Chain Guide Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
3
Timing Chain Guide Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
3
Timing Chain Guide Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Long. Right Short. 05183244AB Tensioner Package Supercedes To A CHAIN PACKAGE The Tensioner Is NOT Included. Intake Primary Left. For Early Production Engines With 3/8`` Pitch. The Distance Between The Two Pins On One Link. This Chain Has Washers On The Pins. Has Square Teeth On Water Pump Pulley. Left Short.
4
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: Balance Shaft To Cylinder Block. M8x1.25x20. Thrust Plate. Balance Shaft To Engine Block.
MSRP $13.10 CAD
$8.12 CAD
MSRP $13.10 CAD
$8.12 CAD
5
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE.
Description: M8x35x17. Chain Guide To Cylinder Block. Attach. M8x1.25x35.00.
6
Intake Camshaft Sprocket, Left Side Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Intake Primary Left.
7
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: M8x20. M8x1.25x20.00. Intake Camshaft Sprocket To Camshaft.
8
Timing Chain Guide, Right Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Right Short.
9
Tensioner Cap Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Primary Tensioner Retainer. Includes Seal And Mounting Bolts.
11
Chain Tensioner Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: O-Ring Seperate For Tensioner Is 68024643AA.
MSRP $117.00 CAD
$80.73 CAD
MSRP $117.00 CAD
$80.73 CAD
12
14
Bushing Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Pivot Tensioner Arm.
15
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Man Aid Header to with S Frame. Tension Arm Piviot To Cylinder Block. Tension Arm Piviot To Engine Block. Pump To Crossover To Block. Crossover to Front Cover to Block. Water pump to cylinder block. Water pump to engine block. Tensioner Arm Pivot To Cylinder Block. M8X1.25X50.00. water pump to front cover.
MSRP $9.75 CAD
$6.03 CAD
MSRP $9.75 CAD
$6.03 CAD
16
Timing Chain Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: For Early Production Engines With 3/8`` Pitch. The Distance Between The Two Pins On One Link. This Chain Has Washers On The Pins. Has Square Teeth On Water Pump Pulley.
17
Timing Chain Guide, Left Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Left Short.
18
Crankshaft Sprocket Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
21
Chain Case Cover Gasket Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: CHAIN CASE COVER
MSRP $58.50 CAD
$41.42 CAD
MSRP $58.50 CAD
$41.42 CAD
23
Front Main Crankshaft Seal Mopar
Mopar Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Front.
MSRP $48.10 CAD
$29.80 CAD
MSRP $48.10 CAD
$29.80 CAD
24
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: Chain Case Cover To Cylinder Block. Tensioner To Cylinder Head Left Or Right. Timing Chain Cover To Engine Block. Tensioner attaching. Oil Pan To Cylinder Block. M6x1.00x23.00. Oil Level Indicator Tube To Front Cover And Engine Block. Oil Level Tube To Cylinder Block. M6x1.0x23.0.
MSRP $5.75 CAD
$4.27 CAD
MSRP $5.75 CAD
$4.27 CAD
25
Camshaft Sensor Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: CAMSHAFT
MSRP $196.00 CAD
$133.89 CAD
MSRP $196.00 CAD
$133.89 CAD
