Home 2002 Jeep Grand Cherokee Laredo 4.7L V8 - Gas Gear Train

My Garage

2002 Jeep Grand Cherokee

Laredo 4.7L V8 - Gas

Change Vehicle

Categories

Automatic Transmission Multi-Speed
Automatic Transmission Multi-Speed
Browse Categories

Gear Train for 2002 Jeep Grand Cherokee

Diagram 1 1. Needle Roller Thrust Bearing Diagram 2 2. L/r Clutch Clutch Diagram 3 3. Needle Roller Thrust Bearing Diagram 4 4. Reverse Complete Carrier Diagram 5 5. Needle Roller Thrust Bearing Diagram 6 6. Needle Roller Thrust Bearing Diagram 7 7. Needle Roller Thrust Bearing
No.
Part # / Description / Price
Price
1
4799469 - Automatic Transmission Multi-Speed: Needle Roller Thrust Bearing for Mopar Image
Needle Roller Thrust Bearing
04799469
Mopar Mopar
Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Thrust Bearing #10 & #11.
MSRP $25.25 CAD
$15.65 CAD
MSRP $25.25 CAD
$15.65 CAD
2

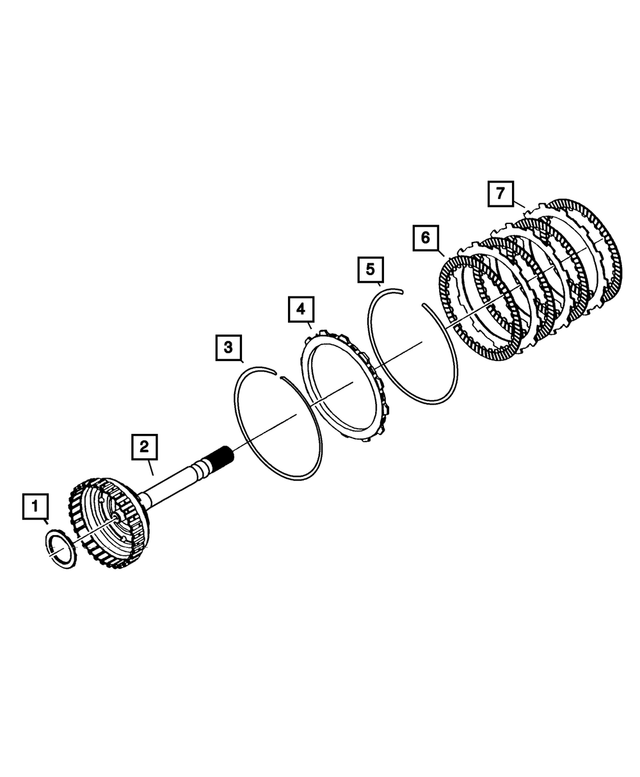

5127485AA - Automatic Transmission Multi-Speed: Underdrive Clutch Hub And Shaft for Mopar Image
Underdrive Clutch Hub And Shaft
05127485AA
Mopar Mopar
Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
MSRP $336.00 CAD
$225.29 CAD
MSRP $336.00 CAD
$225.29 CAD
3
4799760 - Automatic Transmission Multi-Speed: Transmission Snap Ring for Mopar Image
Transmission Snap Ring
04799760
Mopar Mopar
Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
MSRP $14.65 CAD
$10.89 CAD
MSRP $14.65 CAD
$10.89 CAD
4
68009108AA - Automatic Transmission Multi-Speed: Transmission Clutch Reaction Plate for Mopar Image
Transmission Clutch Reaction Plate
68009108AA
Mopar Mopar
Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Used Up To 9/20/06. Input. 3.05/3.21mm Thick. 3.05 / 3.21. 45rfe. 3.60/3.76 mm Thick.
View Details
View Details
4
4799111AD - Automatic Transmission Multi-Speed: Transmission Clutch Reaction Plate for Mopar Image
Transmission Snap Ring
04799111AD
Mopar Mopar
Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Pkg 05013090aa. Pkg 05013090ac. 3.05/3.21mm Thick. 3.05/3.21. 7.00/7.16 mm Thick.
MSRP $39.60 CAD
$29.46 CAD
MSRP $39.60 CAD
$29.46 CAD
