Air Conditioner and Heater Plumbing for 2006 Dodge Grand Caravan

1. Expansion Valve O Ring

2. Variable Restrictor Valve

3. A/c Line 3/8 O Ring

4. Supply & Return W/aux. Heater Tube & Hose

5. Expansion Valve O Ring

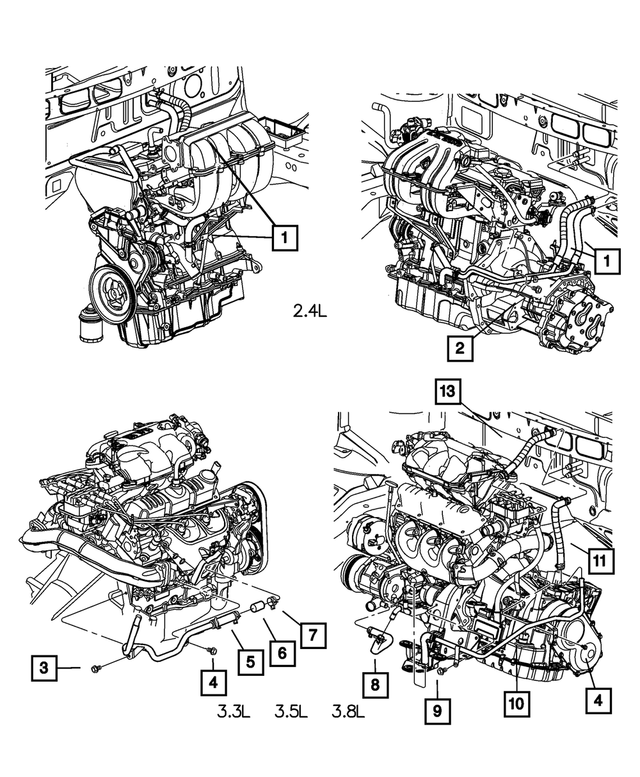

Air Conditioner and Heater Plumbing for 2006 Dodge Grand Caravan #1

10

11

13

2

3

4

4

5

6

7

8

9

No.

Part # / Description / Price

Price

N/A

4677378AB - Air Conditioning & Heater: Variable Restrictor Valve for Mopar Image

Variable Restrictor Valve

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

2

6101799 - Air Conditioning & Heater: Hex Head Bolt And Washer for Mopar Image

Hex Head Bolt And Washer

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

3

6501755 - Air Conditioning & Heater: Hex Head Screw And Washer for Mopar Image

Hex Head Screw And Washer

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: M6x1x16. Throttle Control Bracket. Aluminum Plenum. Filler Tube to Transmission. Cable Bracket to Throttle Body. Throttle Cable Bracket Attach. Bracket Mounting. Throttle Cable to Bellcrank.

4

6502832 - Air Conditioning & Heater: Hex Flange Head Screw for Mopar Image

Hex Flange Head Screw

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: M14x2.00x80.00. Wiring Bracket to Engine Crossover to Trans. Ground Strap attaching at Head. Crossmember Attaching. RF T/O to Cylinder Head Right and Left. Ground To Block. Engine Ground Left Head. M10x1.50x25.00. Bracket lt frt to sill underbody.

MSRP $8.00 CAD

$4.94 CAD

MSRP $8.00 CAD

$4.94 CAD

5

5005344AC - Air Conditioning & Heater: Heater Return Hose for Mopar Image

Heater Return Hose

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

MSRP $450.00 CAD

$302.40 CAD

MSRP $450.00 CAD

$302.40 CAD

5

5005349AC - Air Conditioning & Heater: Heater Return Hose for Mopar Image

Heater Return Hose

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: With Tube. [haa, had].

6

55055694AB - Air Conditioning & Heater: Heater Hose Cap for Mopar Image

Heater Hose Cap

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: 5/8".

7

6502017 - Air Conditioning & Heater: Hose Clamp for Mopar Image

Hose Clamp

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: Oil Drain Hose To Oil Drain Tube. [25mm].

MSRP $13.65 CAD

$8.46 CAD

MSRP $13.65 CAD

$8.46 CAD

8

5005342AD - Air Conditioning & Heater: Oil Cooler Outlet Hose for Mopar Image

Oil Cooler Outlet Hose

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: With Oil Cooler.

9

6505242AA - Air Conditioning & Heater: Screw for Mopar Image

Hex Flange Head Tapping Screw

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

MSRP $4.95 CAD

$3.68 CAD

MSRP $4.95 CAD

$3.68 CAD

10

5005343AB - Air Conditioning & Heater: Heater Return Hose for Mopar Image

Heater Return Hose

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: HEATER RETURN

11

5005348AC - Air Conditioning & Heater: Heater Return Hose for Mopar Image

Heater Return Hose

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.

Description: With Tube, with Oil Cooler.

13

5005347AB - Air Conditioning & Heater: Heater Supply Hose for Mopar Image

Heater Supply Hose

Mopar

Mopar

Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
