Home 2009 Dodge Sprinter 2500 Base 3.0L V6 - Diesel Clutches

My Garage

2009 Dodge Sprinter 2500

Base 3.0L V6 - Diesel

Change Vehicle

Categories

NAG1; W5A380; 5-Speed; Automatic Transmission
NAG1; W5A380; 5-Speed; Automatic Transmission
Browse Categories

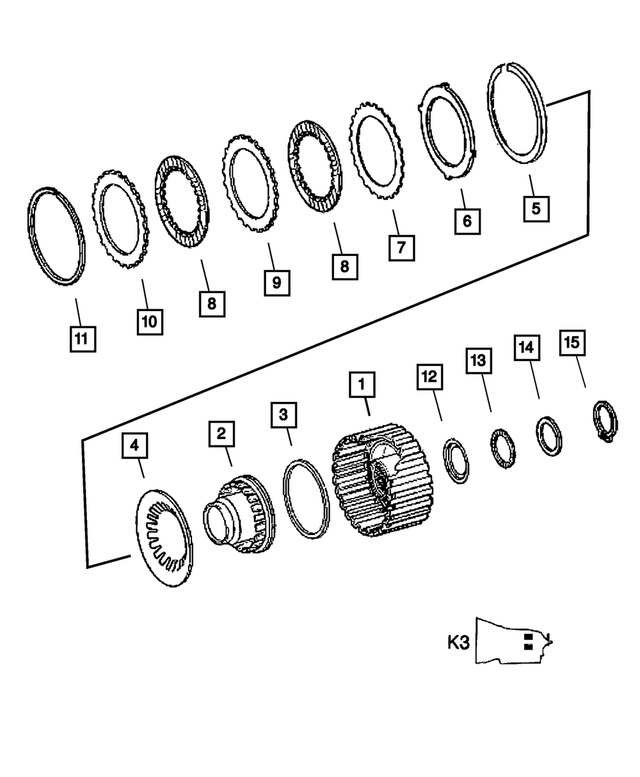

Clutches for 2009 Dodge Sprinter 2500

Diagram 1 1. Input Shaft Diagram 2 2. Support Disc Diagram 3 3. K3 Clutch Retainer Diagram 4 4. Outer Carrier Holding Clutch Diagram 5 5. Plunger Diagram 6 6. Transmission Parking Sprag Diagram 7 7. Spring Disc
No.
Part # / Description / Price
Price
1
52108548AB - NAG1; W5A380; 5-Speed; Automatic Transmission: K3 Clutch Retainer for Mopar Image
Clutch Retainer
52108548AB
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
View Details
View Details
2
52108094AA - NAG1; W5A380; 5-Speed; Automatic Transmission: K3 Clutch Piston for Mopar Image
K3 Clutch Piston
52108094AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
MSRP $62.35 CAD
$44.13 CAD
MSRP $62.35 CAD
$44.13 CAD
3
52108093AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Transmission Seal for Mopar Image
Transmission Seal
52108093AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
MSRP $10.05 CAD
$7.45 CAD
MSRP $10.05 CAD
$7.45 CAD
4
52108095AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Piston Return Spring for Mopar Image
Piston Return Spring
52108095AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
View Details
View Details
5
52107968AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Snap Ring for Mopar Image
Snap Ring
52107968AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
MSRP $20.05 CAD
$14.90 CAD
MSRP $20.05 CAD
$14.90 CAD
6
52108096AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Spring Disc for Mopar Image
Spring Disc
52108096AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
View Details
View Details
8
52108528AB - NAG1; W5A380; 5-Speed; Automatic Transmission: Inner Disc for Mopar Image
Inner Disc
52108528AB
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
View Details
View Details
9
52108529AB - NAG1; W5A380; 5-Speed; Automatic Transmission: Outer Disc for Mopar Image
Outer Disc
52108529AB
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2.8mm]. [2.07 mm]. [2.8 mm].
View Details
View Details
10
52108011AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Outer Disc for Mopar Image
Outer Disc
52108011AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [4.0 mm]. [4.0mm].
View Details
View Details
11
52107974AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Snap Ring for Mopar Image
Snap Ring
52107974AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2.0 mm]. [2.0mm].
View Details
View Details
11
52107973AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Snap Ring for Mopar Image
Snap Ring
52107973AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [3.2 mm]. [3.2mm]. [3.8mm].
View Details
View Details
11
52107972AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Snap Ring for Mopar Image
Snap Ring
52107972AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2.9 mm]. [2.9mm].
View Details
View Details
11
52107970AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Snap Ring for Mopar Image
Snap Ring
52107970AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2.3 mm]. [2.3mm].
View Details
View Details
11
52107971AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Snap Ring for Mopar Image
Snap Ring
52107971AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2.6 mm]. [2.6mm].
View Details
View Details
12
52108148AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Bearing Retainer for Mopar Image
Bearing Retainer
52108148AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
View Details
View Details
13
52108152AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Needle Bearing for Mopar Image
Needle Bearing
52108152AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
View Details
View Details
14
52108151AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Spacer for Mopar Image
Spacer
52108151AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [3.4mm]. [3.4 mm].
View Details
View Details
14
52108149AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Spacer for Mopar Image
Spacer
52108149AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [3.7mm]. [3.7 mm].
View Details
View Details
14
52108150AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Spacer for Mopar Image
Spacer
52108150AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [3.1 mm]. [3.1mm].
View Details
View Details
15
6507358AA - NAG1; W5A380; 5-Speed; Automatic Transmission: Snap Ring for Mopar Image
Snap Ring
06507358AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M35x2.5x1.5.
View Details
View Details
