Valve Body, Accumulator, Solenoid and Parking Sprag for 2010 Dodge Ram 1500

1

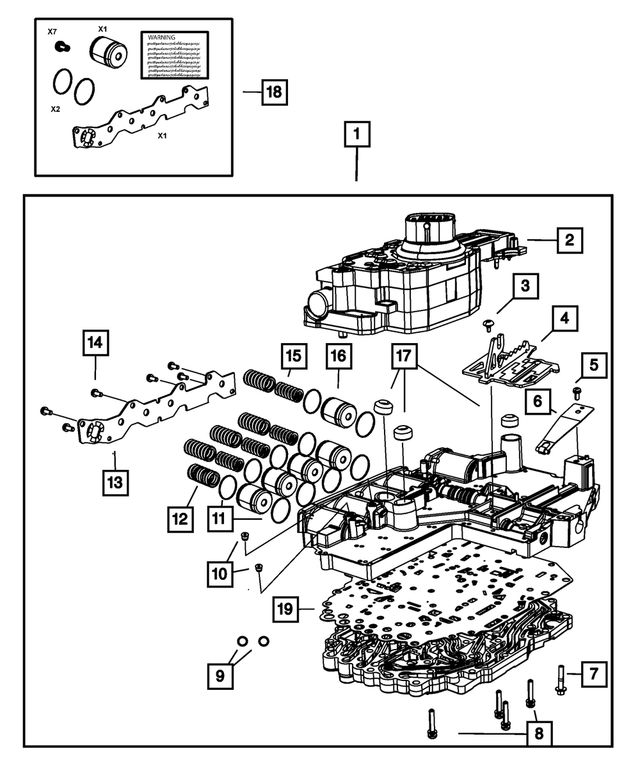

R5166834AF - 545RFE; 5-Speed; Automatic Transmission: Valve Body Assembly, Remanufactured for Mopar Image

Valve Body Assembly, Remanufactured ¹

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: NONE

View Details

1

Valve Body Assembly ¹

RL354765AB

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: NONE

View Details

2

Transmission Solenoid

68353383AC

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: White Connector. Includes Transmission Range Sensor (TRS). Backorder part with unsure availability.

MSRP $534.00 CAD

$355.19 CAD

MSRP $534.00 CAD

$355.19 CAD

3

Shoulder/Truss Screw

06508087AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M5x.8x12.5. Manual Valve Cam Plate.

View Details

4

Manual Valve Cam Plate

04799654AC

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $66.95 CAD

$47.39 CAD

MSRP $66.95 CAD

$47.39 CAD

5

Pan Head Screw

06503232

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M5 x 0.8 x 12.60. Accumulator Cover. Valve Body Detent. Fwd. Oil Filter To Transfer Plate. Sump Filter. Oil Filter to Transmission. Vavle Body Detent.

MSRP $2.70 CAD

$1.67 CAD

MSRP $2.70 CAD

$1.67 CAD

6

Valve Body Detent

52119501AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Use 10/05/02 and after.

View Details

7

Hex Flange Head Bolt

06101525

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Valve body to case. M6x1.00x30. Fixed Guide To Cylinder Block. Primary Tensioner To Cylinder Block.

MSRP $3.30 CAD

$2.43 CAD

MSRP $3.30 CAD

$2.43 CAD

8

Screw

06504780AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Pump valve to pump housing.

MSRP $2.95 CAD

$2.18 CAD

MSRP $2.95 CAD

$2.18 CAD

9

Check Ball

52118261

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Diameter 0.252 inch. Trans Valve Body (Small Check Valve). Transmission Check Valve Small.

MSRP $4.90 CAD

$3.01 CAD

View Details

MSRP $4.90 CAD

$3.01 CAD

View Details

10

Transmission Bleed Orifice

04799086

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $16.50 CAD

$10.22 CAD

MSRP $16.50 CAD

$10.22 CAD

11

Accumulator Seal

04446544

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Fwd. Same Part Number Is Used For All Twelve Seals. Second & Fourth. Second & Forth. Serviced With Valve Body. Trans Accumulator. Seals Bonded To Pistons. Serviced with piston, Seal Is Bonded.

MSRP $14.60 CAD

$9.04 CAD

MSRP $14.60 CAD

$9.04 CAD

12

Accumulator Spring

04471880

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: [OD spring]. Trans. With pk # [04800424ac]. 2nd & 4th Accumulator, Outer. [LR spring]. After 5/16/2002.

View Details

13

Accumulator Cover

04799598AB

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $10.80 CAD

$8.04 CAD

MSRP $10.80 CAD

$8.04 CAD

15

Accumulator Spring

52119702AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: [UC, 2C, 4C and LR springs]. Outer spring. UD, 4C and LR Spring. [OD, UD, 2C and 4C springs].

MSRP $11.05 CAD

$8.21 CAD

MSRP $11.05 CAD

$8.21 CAD

16

Accumulator Piston

04446620AD

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Includes piston seals. Seals are bonded to the piston. Fwd. Same Part Number Is Used For All Six Pistons. Seals Bonded To Pistons. Pistons seals are bonded.

MSRP $66.85 CAD

$39.42 CAD

MSRP $66.85 CAD

$39.42 CAD

17

Clutch Feed Seal

68539966AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $4.50 CAD

$3.35 CAD

MSRP $4.50 CAD

$3.35 CAD

18

Accumulator Cover Accumulator Kit

05174633AB

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Includes 1 piston, 1 cover and 7 screws.

MSRP $90.60 CAD

$62.49 CAD

MSRP $90.60 CAD

$62.49 CAD

19

Transmission Valve Body Plate

52119545AB

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

View Details
