Air Conditioner and Heater Plumbing for 2011 Jeep Grand Cherokee

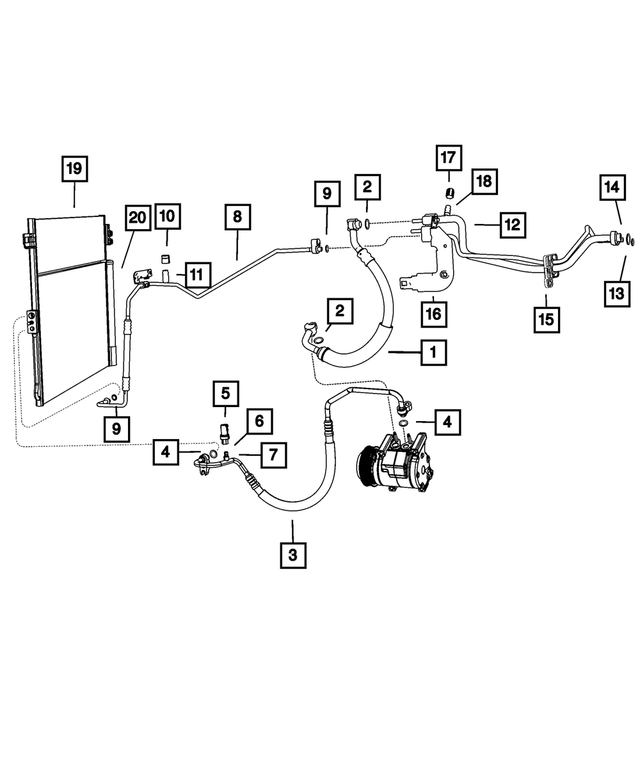

Diagram 1 1. A/c Suction Line Diagram 2 2. Heater Supply And Return Hose And Tube
Air Conditioner and Heater Plumbing for 2011 Jeep Grand Cherokee #0
1
10
11
12
15
16
17
18
19
2
2
20
3
4
4
5
6
7
8
9
9
No.
Part # / Description / Price
Price
1
68161174AB - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68161174AB
Mopar Mopar
Description: Includes: Seals. Upto 3/19/2011. Up To 03/19/2011.
MSRP $153.00 CAD
$105.57 CAD
MSRP $153.00 CAD
$105.57 CAD
2
68086127AA - Air Conditioners and Heaters: A/c Line Seal for Mopar Image
A/C Line Seal
68086127AA
Mopar Mopar
Notes: Engines: 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE. ALL 3.0/3.1L TURBO DIESELS ENGINES. All 5.7L V8 Engines. All V6 Engines.
Description: Round 5/8in. 5/8". Suction line. Serviced with Expansion Valve. Slim Line.
MSRP $32.30 CAD
$24.02 CAD
View Details
MSRP $32.30 CAD
$24.02 CAD
View Details
3
55038018AC - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
55038018AC
Mopar Mopar
Description: Includes: Seals, Transducer, O-Ring, Valve Core.
MSRP $248.00 CAD
$169.29 CAD
MSRP $248.00 CAD
$169.29 CAD
4
68086126AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68086126AA
Mopar Mopar
Description: 1/2". 1/2 inch.
MSRP $22.50 CAD
$16.74 CAD
View Details
MSRP $22.50 CAD
$16.74 CAD
View Details
5
5174039AB - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image
A/C Pressure Transducer Valve
05174039AB
Mopar Mopar
Description: Liquid Line. Includes: O-Ring. Up To 06/28/2010. Discharge Line. Includes Item # 4.
MSRP $257.00 CAD
$172.37 CAD
MSRP $257.00 CAD
$172.37 CAD
6
5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
05183358AA
Mopar Mopar
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
MSRP $33.45 CAD
$24.86 CAD
View Details
MSRP $33.45 CAD
$24.86 CAD
View Details
7
68086137AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68086137AA
Mopar Mopar
View Details
View Details
8
68161180AC - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68161180AC
Mopar Mopar
Description: Includes: Seals, Cap, Valve Core. After 08/29/11.
MSRP $158.00 CAD
$108.59 CAD
MSRP $158.00 CAD
$108.59 CAD
9
68086125AA - Air Conditioners and Heaters: A/c Line Seal for Mopar Image
Slim Line Seal
68086125AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE. ALL 3.0/3.1L TURBO DIESELS ENGINES. All 5.7L V8 Engines. All V6 Engines.
Description: Slim Line. Receiver Drier. 3/8". Liquid line.
MSRP $45.00 CAD
$31.86 CAD
MSRP $45.00 CAD
$31.86 CAD
10
68086128AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68086128AA
Mopar Mopar
View Details
View Details
11
68086130AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68086130AA
Mopar Mopar
MSRP $50.30 CAD
$35.60 CAD
MSRP $50.30 CAD
$35.60 CAD
12
68161176AA - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image
A/C Suction Line
68161176AA
Mopar Mopar
Description: Includes: Seals. Upto 3/19/2011. Up To 03/19/2011.
MSRP $163.00 CAD
$112.09 CAD
MSRP $163.00 CAD
$112.09 CAD
12
55038201AD - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image
A/C Suction And Liquid Line
55038201AD
Mopar Mopar
Description: Upto 3/19/2011. Up To 03/19/2011.
View Details
View Details
12
68161175AE - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image
A/C Suction Line
68161175AE
Mopar Mopar
Description: Includes: Seals. Upto 3/19/2011. Up To 03/19/2011.
MSRP $246.00 CAD
$167.75 CAD
MSRP $246.00 CAD
$167.75 CAD
12
55038201AE - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image
A/C Suction And Liquid Line
55038201AE
Mopar Mopar
Notes: Engines: 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE.
Description: On/after 3/19/2011. After 03/19/2011.
MSRP $390.00 CAD
$261.58 CAD
MSRP $390.00 CAD
$261.58 CAD
15
68086131AA - Air Conditioners and Heaters: A/c Line Bracket for Mopar Image
A/C Line Bracket
68086131AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE.
Description: Plastic.
MSRP $31.40 CAD
$23.35 CAD
MSRP $31.40 CAD
$23.35 CAD
16
68086132AA - Air Conditioners and Heaters: A/c Line Bracket for Mopar Image
A/C Line Bracket
68086132AA
Mopar Mopar
Notes: Engines: 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE.
Description: Aluminum.
View Details
View Details
17
68086135AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68086135AA
Mopar Mopar
Notes: Engines: 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE.
MSRP $33.65 CAD
$25.02 CAD
MSRP $33.65 CAD
$25.02 CAD
18
68086134AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68086134AA
Mopar Mopar
Notes: Engines: 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE. ALL 3.0/3.1L TURBO DIESELS ENGINES. All 5.7L V8 Engines. All V6 Engines.
MSRP $36.70 CAD
$27.29 CAD
MSRP $36.70 CAD
$27.29 CAD
19
55038003AG - Air Conditioners and Heaters: Condenser And Trans Cooler Cooler for Mopar Image
Condenser And Trans Cooler Cooler
55038003AG
Mopar Mopar
Notes: Engines: 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE. ALL 3.0/3.1L TURBO DIESELS ENGINES. All 5.7L V8 Engines. All V6 Engines.
Description: Includes: Reciever Drier - NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
MSRP $849.00 CAD
$564.93 CAD
MSRP $849.00 CAD
$564.93 CAD
20
68084180AA - Air Conditioners and Heaters: Receiver Drier Filter for Mopar Image
Receiver Drier Filter
68084180AA
Mopar Mopar
Notes: Engines: 3.6L Mid V6 Engine. 5.7L V8 MDS VVT ENGINE. ALL 3.0/3.1L TURBO DIESELS ENGINES. All 5.7L V8 Engines. All V6 Engines.
MSRP $345.00 CAD
$231.34 CAD
MSRP $345.00 CAD
$231.34 CAD
