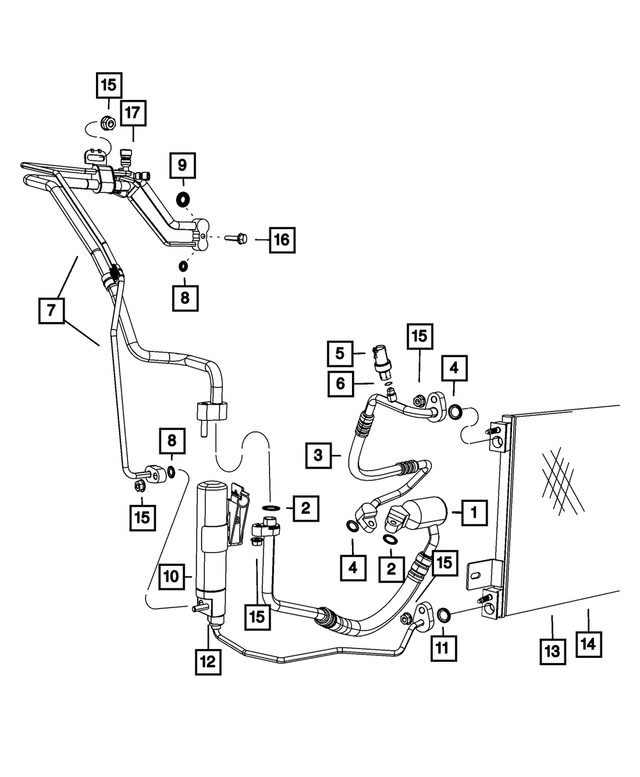

Air Conditioner and Heater Plumbing for 2014 Jeep Patriot
No.
Part # / Description / Price
Price
1
A/C Suction Line
Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: A C SUCTION
2
A/C Line Seal Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Round 5/8in. 5/8". Suction line. Serviced with Expansion Valve. Slim Line.
MSRP $32.30 CAD
$24.02 CAD
MSRP $32.30 CAD
$24.02 CAD
3
A/C Discharge Line Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: On Or After 06/28/2010.
MSRP $213.00 CAD
$145.67 CAD
MSRP $213.00 CAD
$145.67 CAD
4
Slim Line Seal Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Slim Line. Round 1/2in. Discharge line to Compressor. Receiver Drier. Condenser End. 1/2".
MSRP $43.55 CAD
$30.82 CAD
MSRP $43.55 CAD
$30.82 CAD
5
A/C Pressure Transducer Valve Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: 68308727aa. On Or After 06/28/2010. Includes: O-ring.
MSRP $195.00 CAD
$132.97 CAD
MSRP $195.00 CAD
$132.97 CAD
6
A/C Line O Ring Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
MSRP $33.45 CAD
$24.86 CAD
MSRP $33.45 CAD
$24.86 CAD
7
A/C Suction And Liquid Line Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS.
Description: After 09/12/11.
7
A/C Suction And Liquid Line Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: After 09/12/11.
10
Receiver Drier Mopar
Mopar Description: Includes Tube On Bottom Of Drier. Has Line On Bottom.
MSRP $378.00 CAD
$254.02 CAD
MSRP $378.00 CAD
$254.02 CAD
10
Receiver Drier Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION.
Description: Includes Tube On Bottom Of Drier. Has line on the bottom. After 09/12/11.
10
Receiver Drier Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: This Drier Does Not Have A Tube On The Bottom. Does Not Have A Line On The Bottom.
12
Slim Line Seal Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Slim Line. Receiver Drier. 3/8". Liquid line.
MSRP $45.00 CAD
$31.86 CAD
MSRP $45.00 CAD
$31.86 CAD
13
Air Conditioning Condenser Mopar
Mopar Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
MSRP $576.00 CAD
$383.62 CAD
MSRP $576.00 CAD
$383.62 CAD
13
Air Conditioning Condenser Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION.
Description: Manual Transmission [DD7,DEF]. NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
14
Condenser And Trans Cooler Cooler Mopar
Mopar Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Includes: Reciever Drier. NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
15
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC 16V E22 VVT ENGINE. 2.2L I4 SINGLE TD OM651 ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
MSRP $5.65 CAD
$4.19 CAD
MSRP $5.65 CAD
$4.19 CAD
15
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.0L I4 DOHC 16V E22 VVT ENGINE. 2.2L I4 SINGLE TD OM651 ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: NONE
MSRP $5.75 CAD
$4.27 CAD
MSRP $5.75 CAD
$4.27 CAD
16
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 6-SPEED MANUAL AISIN BG6 TRANS.
Description: M8x1.25x35. Injection Pump to Crankcase. M8x35. [m8 x 35]. Cylinder Head Two In Right One In Left. Tensioner Attaching. Bracket to Block. Pump and bracket to engine. Engine Lift Bracket.
MSRP $7.10 CAD
$5.27 CAD
MSRP $7.10 CAD
$5.27 CAD
17
A/C Charge Valve Cap Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: High Side.
17
A/C Charge Valve Cap Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Low Side.
