Home 2016 Fiat 500 Lounge 1.4L L4 - Gas Air Conditioner and Heater Plumbing

My Garage

2016 Fiat 500

Lounge 1.4L L4 - Gas

Change Vehicle

Categories

Air Conditioners and Heaters
Air Conditioners and Heaters
Browse Categories

Air Conditioner and Heater Plumbing for 2016 Fiat 500

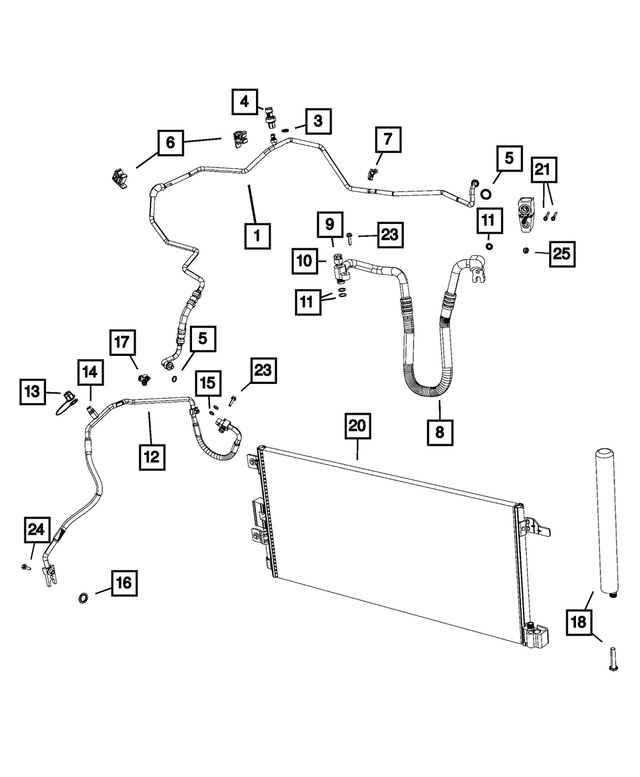

Diagram 1 1. A/c Liquid Line Diagram 2 2. Slim Line Seal Kit Diagram 3 3. Heater Supply Hose Diagram 4 4. Heater Supply Hose Diagram 5 5. Receiver Drier
Air Conditioner and Heater Plumbing for 2016 Fiat 500 #1
1
10
11
11
12
13
14
15
16
17
18
20
21
23
23
24
25
3
4
5
5
6
7
8
9
No.
Part # / Description / Price
Price
N/A
68153949AA - Air Conditioners and Heaters: Slim Line Seal Kit for Mopar Image
Slim Line Seal Kit
68153949AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 MULTIAIR 16V ENGINE.
Description: 3/8". 1/2". Contains Expansion Valve Seals.
View Details
View Details
N/A
5003862AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
05003862AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
Description: Core. Accumulator.
MSRP $11.20 CAD
$6.94 CAD
MSRP $11.20 CAD
$6.94 CAD
N/A
68104662AA - Air Conditioners and Heaters: Receiver Drier O Ring for Mopar Image
Receiver Drier O Ring
68104662AA
Mopar Mopar
Notes: Engines: 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $26.35 CAD
$19.59 CAD
View Details
MSRP $26.35 CAD
$19.59 CAD
View Details
1
68189950AC - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68189950AC
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $220.00 CAD
$150.37 CAD
MSRP $220.00 CAD
$150.37 CAD
3
5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
05183358AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
MSRP $33.45 CAD
$24.86 CAD
View Details
MSRP $33.45 CAD
$24.86 CAD
View Details
4
68127833AB - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image
A/C Pressure Transducer Valve
68127833AB
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
MSRP $124.00 CAD
$84.93 CAD
MSRP $124.00 CAD
$84.93 CAD
5
68152002AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68152002AA
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
Description: 3/8". 8.6mm ID. Lhd only.
MSRP $42.65 CAD
$30.18 CAD
MSRP $42.65 CAD
$30.18 CAD
6
68127834AA - Air Conditioners and Heaters: Clip for Mopar Image
Clip
68127834AA
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
7
68127835AA - Air Conditioners and Heaters: Clip for Mopar Image
Clip
68127835AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
8
68189951AB - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68189951AB
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
8
68225317AA - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68225317AA
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
9
68237075AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68237075AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Low Side.
MSRP $28.70 CAD
$21.34 CAD
MSRP $28.70 CAD
$21.34 CAD
10
5161786AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
05161786AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
Description: Accumulator. Liquid Line.
MSRP $6.55 CAD
$4.86 CAD
MSRP $6.55 CAD
$4.86 CAD
10
68237081AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68237081AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Up to 05/05/2013. Low Side.
MSRP $42.65 CAD
$30.18 CAD
MSRP $42.65 CAD
$30.18 CAD
11
68127836AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
68127836AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
MSRP $16.90 CAD
$12.56 CAD
View Details
MSRP $16.90 CAD
$12.56 CAD
View Details
12
68225316AC - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
68225316AC
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
12
68073142AG - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
68073142AG
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
13
68237082AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68237082AA
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $33.00 CAD
$24.53 CAD
MSRP $33.00 CAD
$24.53 CAD
14
68237083AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68237083AA
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: High Side.
MSRP $51.45 CAD
$36.40 CAD
MSRP $51.45 CAD
$36.40 CAD
15
68127825AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
68127825AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $31.40 CAD
$23.35 CAD
View Details
MSRP $31.40 CAD
$23.35 CAD
View Details
16
68127824AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68127824AA
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
17
68127826AA - Air Conditioners and Heaters: Clip for Mopar Image
Clip
68127826AA
Mopar Mopar
Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
18
68104661AA - Air Conditioners and Heaters: Receiver Drier for Mopar Image
Receiver Drier
68104661AA
Mopar Mopar
Notes: Engines: 1.4L I4 MULTIAIR 16V ENGINE.
Description: Haa=hab+x83-ays.
View Details
View Details
20
68073679AA - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image
Air Conditioning Condenser
68073679AA
Mopar Mopar
Notes: Engines: 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $585.00 CAD
$389.61 CAD
MSRP $585.00 CAD
$389.61 CAD
21
68240731AA - Air Conditioners and Heaters: A/c Expansion Valve for Mopar Image
A/C Expansion Valve
68240731AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 MULTIAIR 16V ENGINE.
View Details
View Details
23
6106156AA - Air Conditioners and Heaters: Screw for Mopar Image
Screw
06106156AA
Mopar Mopar
Description: M6x1x25. Line to Condenser Attaching. Discharge Line To Condenser. Discharge and Suction Line To Compressor.
View Details
View Details
24
6509704AA - Air Conditioners and Heaters: Screw for Mopar Image
Screw
06509704AA
Mopar Mopar
Description: Liquid Line To Condenser. M8x1.25x30. Liquid Line To Compressor. Liquid Line To Condersor.
View Details
View Details
25
6104716AA - Air Conditioners and Heaters: Hex Flange Nut for Mopar Image
Hex Flange Nut
06104716AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
MSRP $5.65 CAD
$4.19 CAD
View Details
MSRP $5.65 CAD
$4.19 CAD
View Details
25
6104709AA - Air Conditioners and Heaters: Hex Flange Nut for Mopar Image
Hex Flange Nut
06104709AA
Mopar Mopar
Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE. 83 KW ELECTRIC MOTOR.
Description: NONE
MSRP $5.75 CAD
$4.27 CAD
MSRP $5.75 CAD
$4.27 CAD
