Air Conditioner and Heater Plumbing for 2017 Ram 1500

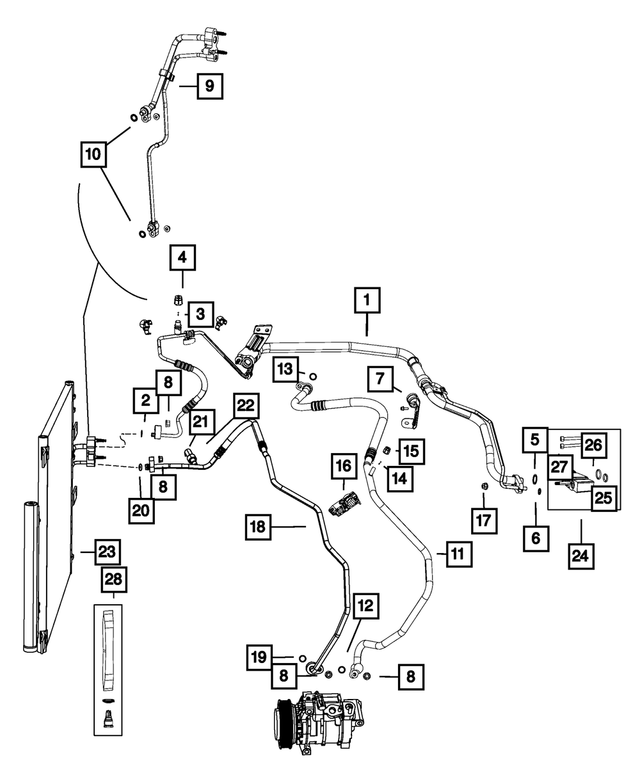

Diagram 1 1. A/c Suction And Liquid Line Diagram 2 2. A/c Suction And Liquid Line Diagram 3 3. Heater Return Hose Diagram 4 4. A/c Suction And Liquid Line
Air Conditioner and Heater Plumbing for 2017 Ram 1500 #0
1
10
11
12
15
16
18
2
23
24
25
26
27
28
3
4
5
8
8
8
8
9
No.
Part # / Description / Price
Price
1
68232468AE - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image
A/C Suction And Liquid Line
68232468AE
Mopar Mopar
Description: Includes: Gaskets, Valve Core, Cap.
View Details
View Details
2
68100676AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100676AA
Mopar Mopar
Description: 10mm ID. 8.6mm id. Drier To Condenser. Drier End. Expansion Valve End. Liquid line to Drier. After 8/21/08. 3/8". Condensor end.
MSRP $20.60 CAD
$15.31 CAD
MSRP $20.60 CAD
$15.31 CAD
3
68237075AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68237075AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 24V VVT ENGINE W/ESS. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Low Side.
MSRP $28.70 CAD
$21.34 CAD
MSRP $28.70 CAD
$21.34 CAD
4
68237082AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68237082AA
Mopar Mopar
MSRP $33.00 CAD
$24.53 CAD
MSRP $33.00 CAD
$24.53 CAD
5
68100682AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100682AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 24V VVT ENGINE W/ESS. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Suction Line to Accumulator. Expansion Valve End. Accumulator End After 5/27/08. Drier End. At Expansion Valve. After 6-17-08. 3/4". Lhd only. Suction line to H-Valve.
MSRP $42.75 CAD
$30.27 CAD
View Details
MSRP $42.75 CAD
$30.27 CAD
View Details
8
6102440AA - Air Conditioners and Heaters: Hex Nut And Washer for Mopar Image
Hex Nut And Washer
06102440AA
Mopar Mopar
MSRP $18.25 CAD
$11.30 CAD
MSRP $18.25 CAD
$11.30 CAD
9
52014545AB - Air Conditioners and Heaters: A/c Condenser Line for Mopar Image
A/C Condenser Line
52014545AB
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 24V VVT ENGINE W/ESS. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-SPD AUTO 845RE TRANS (MAKE). 8-Spd Auto 8HP70 Trans (Buy). 8-Spd Auto 8HP70 Trans (Buy-US).
Description: Includes: Seals. Includes: O-Rings. Jumper.
View Details
View Details
10
68142219AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68142219AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 24V VVT ENGINE W/ESS. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-SPD AUTO 845RE TRANS (MAKE). 8-Spd Auto 8HP70 Trans (Buy). 8-Spd Auto 8HP70 Trans (Buy-US).
Description: 1/2". 1/2 inch.
MSRP $42.10 CAD
$29.80 CAD
View Details
MSRP $42.10 CAD
$29.80 CAD
View Details
11
68232467AC - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68232467AC
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Jumper. Includes: Gaskets, Valve Core, Cap, Clips.
MSRP $383.00 CAD
$257.04 CAD
MSRP $383.00 CAD
$257.04 CAD
12
68100679AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100679AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: 5/8". Compressor End. Suction Line. At Compressor.
MSRP $42.65 CAD
$30.18 CAD
MSRP $42.65 CAD
$30.18 CAD
15
68237081AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68237081AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Up to 05/05/2013. Low Side.
MSRP $42.65 CAD
$30.18 CAD
MSRP $42.65 CAD
$30.18 CAD
16
68143878AA - Air Conditioners and Heaters: A/c Line Clip for Mopar Image
A/C Line Clip
68143878AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
MSRP $6.65 CAD
$4.94 CAD
MSRP $6.65 CAD
$4.94 CAD
18
68143796AE - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
68143796AE
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Includes: Gaskets, O-Ring, Transducer, Valve Core.
MSRP $191.00 CAD
$130.59 CAD
MSRP $191.00 CAD
$130.59 CAD
23
52014632AD - Air Conditioners and Heaters: Condenser And Trans Cooler Cooler for Mopar Image
Condenser And Trans Cooler Cooler
52014632AD
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 24V VVT ENGINE W/ESS. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine. Transmissions: 8-SPD AUTO 845RE TRANS (MAKE). 8-Spd Auto 8HP70 Trans (Buy). 8-Spd Auto 8HP70 Trans (Buy-US).
Description: Includes: Jumper Tube, Drier. Warren Built Up To 02/01/2020. Saltillo Built Up To 02/06/2020.
MSRP $745.00 CAD
$496.00 CAD
MSRP $745.00 CAD
$496.00 CAD
24
68417140AA - Air Conditioners and Heaters: A/c Expansion Valve Kit for Mopar Image
A/C Expansion Valve Kit
68417140AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Includes: Bolts, O-Rings. Includes: O-Rings and Screws.
MSRP $284.00 CAD
$190.51 CAD
MSRP $284.00 CAD
$190.51 CAD
25
5161806AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
05161806AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: 5/8".
MSRP $44.05 CAD
$27.29 CAD
MSRP $44.05 CAD
$27.29 CAD
26
68046015AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
68046015AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: 1/2".
MSRP $33.30 CAD
$24.78 CAD
MSRP $33.30 CAD
$24.78 CAD
27
68048615AA - Air Conditioners and Heaters: Bolt for Mopar Image
Bolt
68048615AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Expansion Valve Attaching.
View Details
View Details
28
68447796AA - Air Conditioners and Heaters: A/c Filter Drier Filter Kit for Mopar Image
A/C Filter Drier Filter Kit
68447796AA
Mopar Mopar
Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-SPD AUTO 845RE TRANS (MAKE). 8-Spd Auto 8HP70 Trans (Buy). 8-Spd Auto 8HP70 Trans (Buy-US).
MSRP $89.45 CAD
$61.71 CAD
MSRP $89.45 CAD
$61.71 CAD
