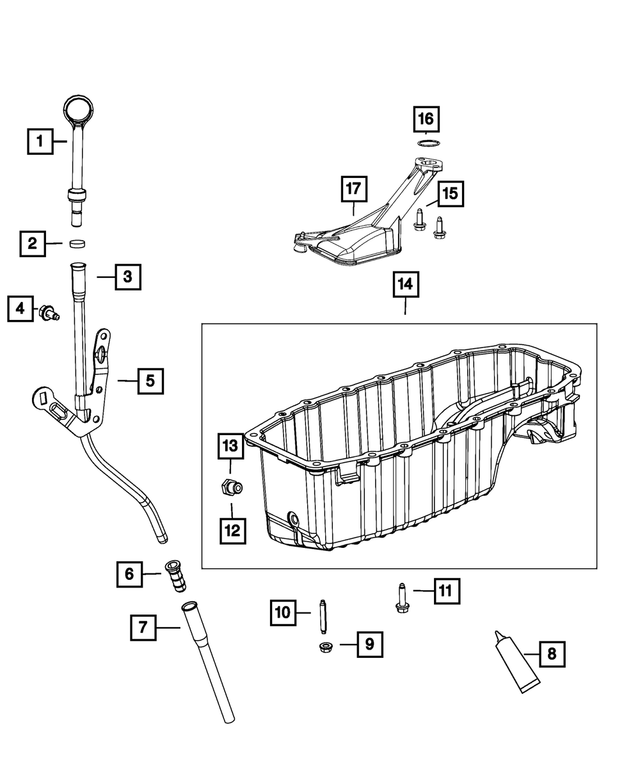

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2018 Fiat 500X
No.
Part # / Description / Price
Price
1
Engine Oil Level Indicator
Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: Used After 12/03/2014.
3
Engine Oil Indicator Tube Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
MSRP $66.05 CAD
$46.75 CAD
MSRP $66.05 CAD
$46.75 CAD
4
Hex Flange Head Bolt, US, Canada, Mexico Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. 2.4L I4 ZERO EVAP M-AIR ENGINE. Transmissions: 6-Speed C635 Manual Transmission. 9-SPD 948TE AUTO TRANS.
Description: M6x1.00x16.00. PCV Valve To Bracket. PCV Valve To Cylinder Head Cover. Engine Oil Separator To Cylinder Head Cover. Hinge To Liftgate. Lines To Engine. M6x16. Separator To Bracket. Bracket To Engine. Intake Manifold To Cylinder Head.
6
Engine Oil Indicator Tube Seal Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: BROCHURE DISPLAY EQUIPM
MSRP $11.60 CAD
$8.62 CAD
MSRP $11.60 CAD
$8.62 CAD
7
Engine Oil Indicator Tube, Lower Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: Lower.
8
Rtv Gray Sealer Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: Transfer Case. MoPar C514 Cover Sealer.
9
Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. 2.4L I4 ZERO EVAP M-AIR ENGINE. Transmissions: 6-Speed C635 Manual Transmission. 9-SPD 948TE AUTO TRANS.
Description: M6x1.00. Line To Bracket. A/C Line To Compressor. Fender attach to Cowl Panel upper small hole. Engine Oil Pan To Oil Pump.
MSRP $4.05 CAD
$3.01 CAD
MSRP $4.05 CAD
$3.01 CAD
11
Hex Flange Head Bolt, Mounting, Lower Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: M6x1.00x25.00. Retains radiator. Engine Oil Pan To Cylinder Block. Lower Timing Cover. Timing Belt Cover.
MSRP $4.85 CAD
$3.60 CAD
MSRP $4.85 CAD
$3.60 CAD
12
Oil Drain Plug Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
MSRP $21.40 CAD
$15.91 CAD
MSRP $21.40 CAD
$15.91 CAD
14
Engine Oil Pan Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: 2wd.
MSRP $471.00 CAD
$316.01 CAD
MSRP $471.00 CAD
$316.01 CAD
15
Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
Description: Oil Pickup Tube To Oil Pump. M6x1x18. Bracket to body. M6x18. Heater hose to engine.
MSRP $6.45 CAD
$4.77 CAD
MSRP $6.45 CAD
$4.77 CAD
16
Oil Pick Up Tube O Ring Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
MSRP $98.90 CAD
$68.23 CAD
MSRP $98.90 CAD
$68.23 CAD
17
Oil Pickup Tube Mopar
Mopar Notes: Engines: 1.4L I4 MULTIAIR TURBO ENGINE. Transmissions: 6-Speed C635 Manual Transmission.
